Schema documentation for component assertion

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element assertion_definition

Namespace

http://www.sqlparser.com/xml/ansi2003

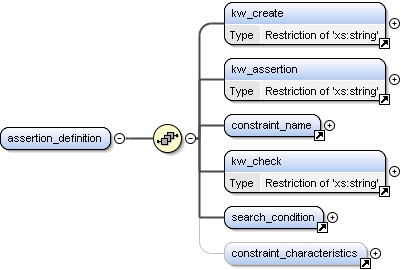

Diagram

Properties

content

complex

Used by

Elements	schema_element, sql_schema_definition_statement
Element Group	schema_definition_and_manipulation

Model

kw_create , kw_assertion , constraint_name , kw_check , search_condition , constraint_characteristics{0,1}

Children

constraint_characteristics, constraint_name, kw_assertion, kw_check, kw_create, search_condition

Instance

<assertion_definition xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_create>{1,1}</kw_create>
  <kw_assertion>{1,1}</kw_assertion>
  <constraint_name>{1,1}</constraint_name>
  <kw_check>{1,1}</kw_check>
  <search_condition>{1,1}</search_condition>
  <constraint_characteristics>{0,1}</constraint_characteristics>
</assertion_definition>

Source

<xs:element name="assertion_definition">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_create"/>
      <xs:element ref="kw_assertion"/>
      <xs:element ref="constraint_name"/>
      <xs:element ref="kw_check"/>
      <xs:element ref="search_condition"/>
      <xs:element ref="constraint_characteristics" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
