Element attribute_definition

Namespace

http://www.sqlparser.com/xml/ansi2003

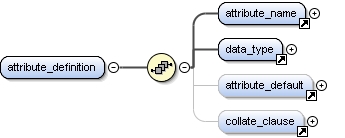

Diagram

Properties

content

complex

Used by

Elements	add_attribute_definition, member
Element Group	schema_definition_and_manipulation

Model

attribute_name , data_type , attribute_default{0,1} , collate_clause{0,1}

Children

attribute_default, attribute_name, collate_clause, data_type

Instance

<attribute_definition xmlns="http://www.sqlparser.com/xml/ansi2003">
  <attribute_name>{1,1}</attribute_name>
  <data_type>{1,1}</data_type>
  <attribute_default>{0,1}</attribute_default>
  <collate_clause>{0,1}</collate_clause>
</attribute_definition>

Source

<xs:element name="attribute_definition">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="attribute_name"/>
      <xs:element ref="data_type"/>
      <xs:element ref="attribute_default" minOccurs="0"/>
      <xs:element ref="collate_clause" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
