Schema documentation for component character_overlay

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element character_overlay_function

Namespace

http://www.sqlparser.com/xml/ansi2003

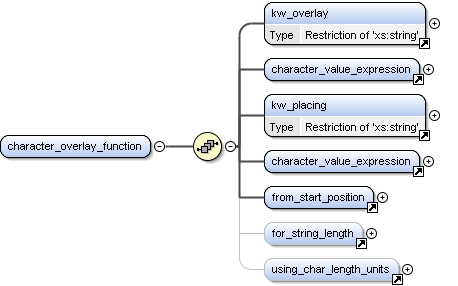

Diagram

Properties

content

complex

Used by

Element

character_value_function

Model

kw_overlay , character_value_expression , kw_placing , character_value_expression , from_start_position , for_string_length{0,1} , using_char_length_units{0,1}

Children

character_value_expression, for_string_length, from_start_position, kw_overlay, kw_placing, using_char_length_units

Instance

<character_overlay_function xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_overlay>{1,1}</kw_overlay>
  <character_value_expression>{1,1}</character_value_expression>
  <kw_placing>{1,1}</kw_placing>
  <character_value_expression>{1,1}</character_value_expression>
  <from_start_position>{1,1}</from_start_position>
  <for_string_length>{0,1}</for_string_length>
  <using_char_length_units>{0,1}</using_char_length_units>
</character_overlay_function>

Source

<xs:element name="character_overlay_function">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_overlay"/>
      <xs:element ref="character_value_expression"/>
      <xs:element ref="kw_placing"/>
      <xs:element ref="character_value_expression"/>
      <xs:element ref="from_start_position"/>
      <xs:element ref="for_string_length" minOccurs="0"/>
      <xs:element ref="using_char_length_units" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
