Schema documentation for component declare

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element declare_cursor

Namespace

http://www.sqlparser.com/xml/ansi2003

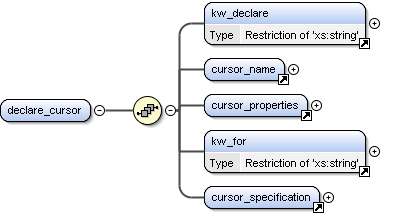

Diagram

Properties

content

complex

Used by

Elements	module_contents, statement_or_declaration
Element Group	data_manipulation

Model

kw_declare , cursor_name , cursor_properties , kw_for , cursor_specification

Children

cursor_name, cursor_properties, cursor_specification, kw_declare, kw_for

Instance

<declare_cursor xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_declare>{1,1}</kw_declare>
  <cursor_name>{1,1}</cursor_name>
  <cursor_properties>{1,1}</cursor_properties>
  <kw_for>{1,1}</kw_for>
  <cursor_specification>{1,1}</cursor_specification>
</declare_cursor>

Source

<xs:element name="declare_cursor">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_declare"/>
      <xs:element ref="cursor_name"/>
      <xs:element ref="cursor_properties"/>
      <xs:element ref="kw_for"/>
      <xs:element ref="cursor_specification"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
