Schema documentation for component describe_input

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element describe_input_statement

Namespace

http://www.sqlparser.com/xml/ansi2003

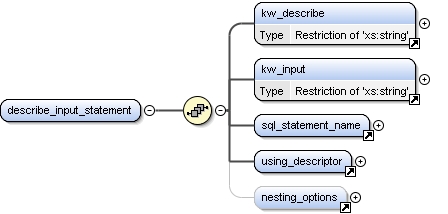

Diagram

Properties

content

complex

Used by

Element

describe_statement

Model

kw_describe , kw_input , sql_statement_name , using_descriptor , nesting_options{0,1}

Children

kw_describe, kw_input, nesting_options, sql_statement_name, using_descriptor

Instance

<describe_input_statement xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_describe>{1,1}</kw_describe>
  <kw_input>{1,1}</kw_input>
  <sql_statement_name>{1,1}</sql_statement_name>
  <using_descriptor>{1,1}</using_descriptor>
  <nesting_options>{0,1}</nesting_options>
</describe_input_statement>

Source

<xs:element name="describe_input_statement">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_describe"/>
      <xs:element ref="kw_input"/>
      <xs:element ref="sql_statement_name"/>
      <xs:element ref="using_descriptor"/>
      <xs:element ref="nesting_options" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
