Schema documentation for component drop_domain_constraint

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element drop_domain_constraint_definition

Namespace

http://www.sqlparser.com/xml/ansi2003

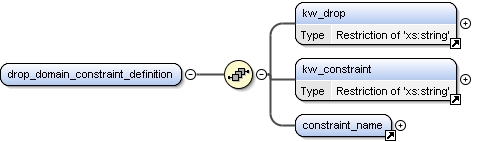

Diagram

Properties

content

complex

Used by

Element	alter_domain_action
Element Group	schema_definition_and_manipulation

Model

kw_drop , kw_constraint , constraint_name

Children

constraint_name, kw_constraint, kw_drop

Instance

<drop_domain_constraint_definition xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_drop>{1,1}</kw_drop>
  <kw_constraint>{1,1}</kw_constraint>
  <constraint_name>{1,1}</constraint_name>
</drop_domain_constraint_definition>

Source

<xs:element name="drop_domain_constraint_definition">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_drop"/>
      <xs:element ref="kw_constraint"/>
      <xs:element ref="constraint_name"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
