Schema documentation for component execute

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element execute_statement

Namespace

http://www.sqlparser.com/xml/ansi2003

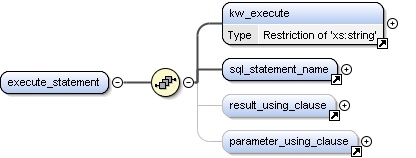

Diagram

Properties

content

complex

Used by

Element	sql_dynamic_statement
Element Group	dynamic_sql

Model

kw_execute , sql_statement_name , result_using_clause{0,1} , parameter_using_clause{0,1}

Children

kw_execute, parameter_using_clause, result_using_clause, sql_statement_name

Instance

<execute_statement xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_execute>{1,1}</kw_execute>
  <sql_statement_name>{1,1}</sql_statement_name>
  <result_using_clause>{0,1}</result_using_clause>
  <parameter_using_clause>{0,1}</parameter_using_clause>
</execute_statement>

Source

<xs:element name="execute_statement">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_execute"/>
      <xs:element ref="sql_statement_name"/>
      <xs:element ref="result_using_clause" minOccurs="0"/>
      <xs:element ref="parameter_using_clause" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
