Schema documentation for component grouping

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element grouping_element

Namespace

http://www.sqlparser.com/xml/ansi2003

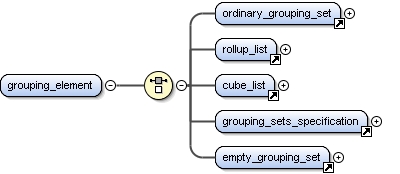

Diagram

Properties

content

complex

Used by

Element

grouping_element_list

Model

ordinary_grouping_set | rollup_list | cube_list | grouping_sets_specification | empty_grouping_set

Children

cube_list, empty_grouping_set, grouping_sets_specification, ordinary_grouping_set, rollup_list

Instance

<grouping_element xmlns="http://www.sqlparser.com/xml/ansi2003">
  <ordinary_grouping_set>{1,1}</ordinary_grouping_set>
  <rollup_list>{1,1}</rollup_list>
  <cube_list>{1,1}</cube_list>
  <grouping_sets_specification>{1,1}</grouping_sets_specification>
  <empty_grouping_set>{1,1}</empty_grouping_set>
</grouping_element>

Source

<xs:element name="grouping_element">
  <xs:complexType>
    <xs:choice>
      <xs:element ref="ordinary_grouping_set"/>
      <xs:element ref="rollup_list"/>
      <xs:element ref="cube_list"/>
      <xs:element ref="grouping_sets_specification"/>
      <xs:element ref="empty_grouping_set"/>
    </xs:choice>
  </xs:complexType>
</xs:element>
