Schema documentation for component merge_when_not_matched

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element merge_when_not_matched_clause

Namespace

http://www.sqlparser.com/xml/ansi2003

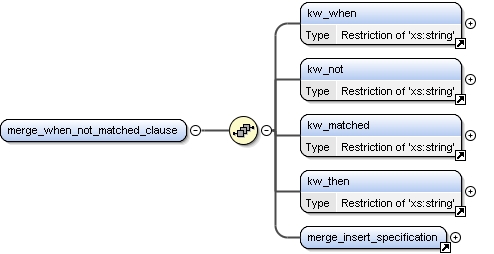

Diagram

Properties

content

complex

Used by

Element

merge_when_clause

Model

kw_when , kw_not , kw_matched , kw_then , merge_insert_specification

Children

kw_matched, kw_not, kw_then, kw_when, merge_insert_specification

Instance

<merge_when_not_matched_clause xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_when>{1,1}</kw_when>
  <kw_not>{1,1}</kw_not>
  <kw_matched>{1,1}</kw_matched>
  <kw_then>{1,1}</kw_then>
  <merge_insert_specification>{1,1}</merge_insert_specification>
</merge_when_not_matched_clause>

Source

<xs:element name="merge_when_not_matched_clause">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_when"/>
      <xs:element ref="kw_not"/>
      <xs:element ref="kw_matched"/>
      <xs:element ref="kw_then"/>
      <xs:element ref="merge_insert_specification"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
