Schema documentation for component prepare

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element prepare_statement

Namespace

http://www.sqlparser.com/xml/ansi2003

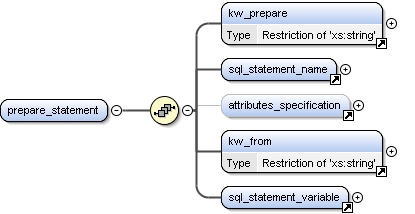

Diagram

Properties

content

complex

Used by

Element	sql_dynamic_statement
Element Group	dynamic_sql

Model

kw_prepare , sql_statement_name , attributes_specification{0,1} , kw_from , sql_statement_variable

Children

attributes_specification, kw_from, kw_prepare, sql_statement_name, sql_statement_variable

Instance

<prepare_statement xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_prepare>{1,1}</kw_prepare>
  <sql_statement_name>{1,1}</sql_statement_name>
  <attributes_specification>{0,1}</attributes_specification>
  <kw_from>{1,1}</kw_from>
  <sql_statement_variable>{1,1}</sql_statement_variable>
</prepare_statement>

Source

<xs:element name="prepare_statement">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_prepare"/>
      <xs:element ref="sql_statement_name"/>
      <xs:element ref="attributes_specification" minOccurs="0"/>
      <xs:element ref="kw_from"/>
      <xs:element ref="sql_statement_variable"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
