Schema documentation for component referenceable_view

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element referenceable_view_specification

Namespace

http://www.sqlparser.com/xml/ansi2003

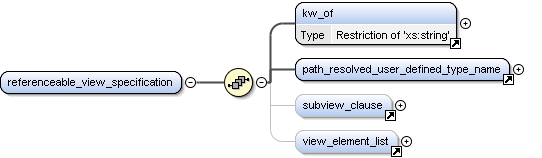

Diagram

Properties

content

complex

Used by

Element

view_specification

Model

kw_of , path_resolved_user_defined_type_name , subview_clause{0,1} , view_element_list{0,1}

Children

kw_of, path_resolved_user_defined_type_name, subview_clause, view_element_list

Instance

<referenceable_view_specification xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_of>{1,1}</kw_of>
  <path_resolved_user_defined_type_name>{1,1}</path_resolved_user_defined_type_name>
  <subview_clause>{0,1}</subview_clause>
  <view_element_list>{0,1}</view_element_list>
</referenceable_view_specification>

Source

<xs:element name="referenceable_view_specification">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_of"/>
      <xs:element ref="path_resolved_user_defined_type_name"/>
      <xs:element ref="subview_clause" minOccurs="0"/>
      <xs:element ref="view_element_list" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
