Schema documentation for component select_statement_single

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element select_statement_single_row

Namespace

http://www.sqlparser.com/xml/ansi2003

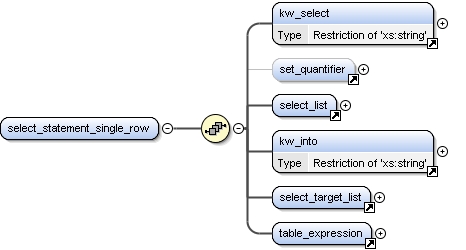

Diagram

Properties

content

complex

Used by

Element	sql_data_statement
Element Group	data_manipulation

Model

kw_select , set_quantifier{0,1} , select_list , kw_into , select_target_list , table_expression

Children

kw_into, kw_select, select_list, select_target_list, set_quantifier, table_expression

Instance

<select_statement_single_row xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_select>{1,1}</kw_select>
  <set_quantifier>{0,1}</set_quantifier>
  <select_list>{1,1}</select_list>
  <kw_into>{1,1}</kw_into>
  <select_target_list>{1,1}</select_target_list>
  <table_expression>{1,1}</table_expression>
</select_statement_single_row>

Source

<xs:element name="select_statement_single_row">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_select"/>
      <xs:element ref="set_quantifier" minOccurs="0"/>
      <xs:element ref="select_list"/>
      <xs:element ref="kw_into"/>
      <xs:element ref="select_target_list"/>
      <!-- into clause -->
      <xs:element ref="table_expression"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
