Schema documentation for component self_referencing_column

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element self_referencing_column_specification

Namespace

http://www.sqlparser.com/xml/ansi2003

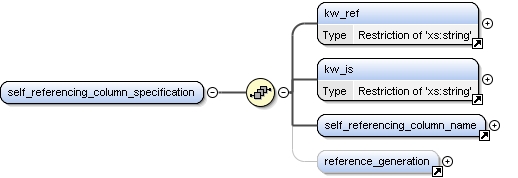

Diagram

Properties

content

complex

Used by

Elements

typed_table_element, view_element

Model

kw_ref , kw_is , self_referencing_column_name , reference_generation{0,1}

Children

kw_is, kw_ref, reference_generation, self_referencing_column_name

Instance

<self_referencing_column_specification xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_ref>{1,1}</kw_ref>
  <kw_is>{1,1}</kw_is>
  <self_referencing_column_name>{1,1}</self_referencing_column_name>
  <reference_generation>{0,1}</reference_generation>
</self_referencing_column_specification>

Source

<xs:element name="self_referencing_column_specification">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_ref"/>
      <xs:element ref="kw_is"/>
      <xs:element ref="self_referencing_column_name"/>
      <xs:element ref="reference_generation" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
