Schema documentation for component window_frame

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element window_frame_clause

Namespace

http://www.sqlparser.com/xml/ansi2003

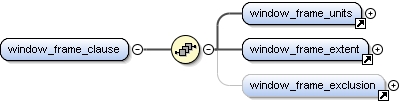

Diagram

Properties

content

complex

Used by

Element

window_specification_details

Model

window_frame_units , window_frame_extent , window_frame_exclusion{0,1}

Children

window_frame_exclusion, window_frame_extent, window_frame_units

Instance

<window_frame_clause xmlns="http://www.sqlparser.com/xml/ansi2003">
  <window_frame_units>{1,1}</window_frame_units>
  <window_frame_extent>{1,1}</window_frame_extent>
  <window_frame_exclusion>{0,1}</window_frame_exclusion>
</window_frame_clause>

Source

<xs:element name="window_frame_clause">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="window_frame_units"/>
      <xs:element ref="window_frame_extent"/>
      <xs:element ref="window_frame_exclusion" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
