Schema documentation for component all_fields

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element all_fields_reference

Namespace

http://www.sqlparser.com/xml/ansi2003

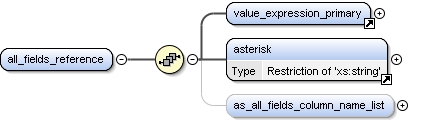

Diagram

Properties

content

complex

Used by

Element

qualified_asterisk

Model

value_expression_primary , asterisk , as_all_fields_column_name_list{0,1}

Children

as_all_fields_column_name_list, asterisk, value_expression_primary

Instance

<all_fields_reference xmlns="http://www.sqlparser.com/xml/ansi2003">
  <value_expression_primary>{1,1}</value_expression_primary>
  <asterisk>{1,1}</asterisk>
  <as_all_fields_column_name_list>{0,1}</as_all_fields_column_name_list>
</all_fields_reference>

Source

<xs:element name="all_fields_reference">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="value_expression_primary"/>
      <xs:element ref="asterisk"/>
      <xs:element name="as_all_fields_column_name_list" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="kw_as"/>
            <xs:element ref="all_fields_column_name_list"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element all_fields_reference / as_all_fields_column_name_list
