Schema documentation for component between_predicate_part

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element between_predicate_part_2

Namespace

http://www.sqlparser.com/xml/ansi2003

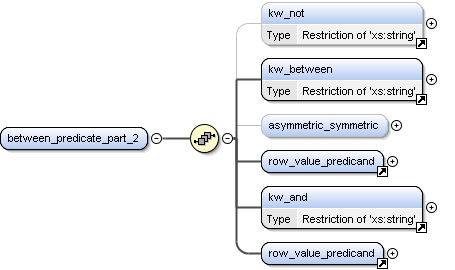

Diagram

Properties

content

complex

Used by

Elements

between_predicate, when_operand

Model

kw_not{0,1} , kw_between , asymmetric_symmetric{0,1} , row_value_predicand , kw_and , row_value_predicand

Children

asymmetric_symmetric, kw_and, kw_between, kw_not, row_value_predicand

Instance

<between_predicate_part_2 xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_not>{0,1}</kw_not>
  <kw_between>{1,1}</kw_between>
  <asymmetric_symmetric>{0,1}</asymmetric_symmetric>
  <row_value_predicand>{1,1}</row_value_predicand>
  <kw_and>{1,1}</kw_and>
  <row_value_predicand>{1,1}</row_value_predicand>
</between_predicate_part_2>

Source

<xs:element name="between_predicate_part_2">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_not" minOccurs="0"/>
      <xs:element ref="kw_between"/>
      <xs:element name="asymmetric_symmetric" minOccurs="0">
        <xs:complexType>
          <xs:choice>
            <xs:element ref="kw_asymmetric"/>
            <xs:element ref="kw_symmetric"/>
          </xs:choice>
        </xs:complexType>
      </xs:element>
      <xs:element ref="row_value_predicand"/>
      <xs:element ref="kw_and"/>
      <xs:element ref="row_value_predicand"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

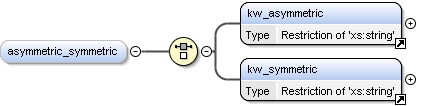

Element between_predicate_part_2 / asymmetric_symmetric
