Schema documentation for component collation

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element collation_definition

Namespace

http://www.sqlparser.com/xml/ansi2003

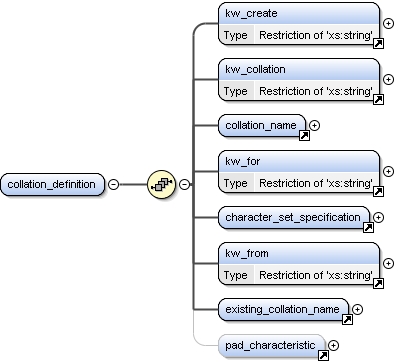

Diagram

Properties

content

complex

Used by

Elements	schema_element, sql_schema_definition_statement
Element Group	schema_definition_and_manipulation

Model

kw_create , kw_collation , collation_name , kw_for , character_set_specification , kw_from , existing_collation_name , pad_characteristic{0,1}

Children

character_set_specification, collation_name, existing_collation_name, kw_collation, kw_create, kw_for, kw_from, pad_characteristic

Instance

<collation_definition xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_create>{1,1}</kw_create>
  <kw_collation>{1,1}</kw_collation>
  <collation_name>{1,1}</collation_name>
  <kw_for>{1,1}</kw_for>
  <character_set_specification>{1,1}</character_set_specification>
  <kw_from>{1,1}</kw_from>
  <existing_collation_name>{1,1}</existing_collation_name>
  <pad_characteristic>{0,1}</pad_characteristic>
</collation_definition>

Source

<xs:element name="collation_definition">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_create"/>
      <xs:element ref="kw_collation"/>
      <xs:element ref="collation_name"/>
      <xs:element ref="kw_for"/>
      <xs:element ref="character_set_specification"/>
      <xs:element ref="kw_from"/>
      <xs:element ref="existing_collation_name"/>
      <xs:element ref="pad_characteristic" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
