Schema documentation for component character_set

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element character_set_specification

Namespace

http://www.sqlparser.com/xml/ansi2003

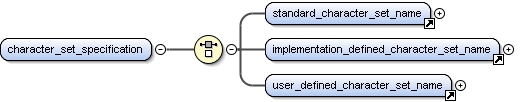

Diagram

Properties

content

complex

Used by

Elements

character_set_source, character_set_specification_list, character_string_literal/introducer_character_set_specification, collation_definition, embedded_character_set_declaration, module_character_set_specification, predefined_type/character_string_type_with_charater_set_collate, schema_character_set_specification, source_character_set_specification, target_character_set_specification, unicode_character_string_literal/introducer_character_set_specification

Element Group

additional_common_elements

Model

standard_character_set_name | implementation_defined_character_set_name | user_defined_character_set_name

Children

implementation_defined_character_set_name, standard_character_set_name, user_defined_character_set_name

Instance

<character_set_specification xmlns="http://www.sqlparser.com/xml/ansi2003">
  <standard_character_set_name>{1,1}</standard_character_set_name>
  <implementation_defined_character_set_name>{1,1}</implementation_defined_character_set_name>
  <user_defined_character_set_name>{1,1}</user_defined_character_set_name>
</character_set_specification>

Source

<xs:element name="character_set_specification">
  <xs:complexType>
    <xs:choice>
      <xs:element ref="standard_character_set_name"/>
      <xs:element ref="implementation_defined_character_set_name"/>
      <xs:element ref="user_defined_character_set_name"/>
    </xs:choice>
  </xs:complexType>
</xs:element>
