Schema documentation for component column_default

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element column_default_option

Namespace

http://www.sqlparser.com/xml/ansi2003

Diagram

Properties

content

complex

Used by

Element

like_option

Model

including_defaults | excluding_defaults

Children

excluding_defaults, including_defaults

Instance

<column_default_option xmlns="http://www.sqlparser.com/xml/ansi2003">
  <including_defaults>{1,1}</including_defaults>
  <excluding_defaults>{1,1}</excluding_defaults>
</column_default_option>

Source

<xs:element name="column_default_option">
  <xs:complexType>
    <xs:choice>
      <xs:element name="including_defaults">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="kw_including"/>
            <xs:element ref="kw_defaults"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="excluding_defaults">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="kw_excluding"/>
            <xs:element ref="kw_defaults"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:choice>
  </xs:complexType>
</xs:element>

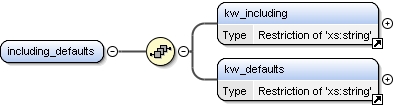

Element column_default_option / including_defaults

Namespace

http://www.sqlparser.com/xml/ansi2003

Diagram

Properties

content

complex

Model

kw_including , kw_defaults

Children

kw_defaults, kw_including

Instance

<including_defaults xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_including>{1,1}</kw_including>
  <kw_defaults>{1,1}</kw_defaults>
</including_defaults>

Source

<xs:element name="including_defaults">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_including"/>
      <xs:element ref="kw_defaults"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

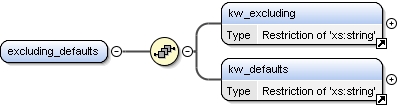

Element column_default_option / excluding_defaults

Namespace

http://www.sqlparser.com/xml/ansi2003

Diagram

Properties

content

complex

Model

kw_excluding , kw_defaults

Children

kw_defaults, kw_excluding

Instance

<excluding_defaults xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_excluding>{1,1}</kw_excluding>
  <kw_defaults>{1,1}</kw_defaults>
</excluding_defaults>

Source

<xs:element name="excluding_defaults">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_excluding"/>
      <xs:element ref="kw_defaults"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
