Schema documentation for component cursor

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element cursor_holdability

Namespace

http://www.sqlparser.com/xml/ansi2003

Diagram

Properties

content

complex

Used by

Elements

cursor_attribute, cursor_properties

Model

with_hold | without_hold

Children

with_hold, without_hold

Instance

<cursor_holdability xmlns="http://www.sqlparser.com/xml/ansi2003">
  <with_hold>{1,1}</with_hold>
  <without_hold>{1,1}</without_hold>
</cursor_holdability>

Source

<xs:element name="cursor_holdability">
  <xs:complexType>
    <xs:choice>
      <xs:element name="with_hold">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="kw_with"/>
            <xs:element ref="kw_hold"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="without_hold">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="kw_without"/>
            <xs:element ref="kw_hold"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:choice>
  </xs:complexType>
</xs:element>

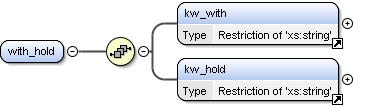

Element cursor_holdability / with_hold

Namespace

http://www.sqlparser.com/xml/ansi2003

Diagram

Properties

content

complex

Model

kw_with , kw_hold

Children

kw_hold, kw_with

Instance

<with_hold xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_with>{1,1}</kw_with>
  <kw_hold>{1,1}</kw_hold>
</with_hold>

Source

<xs:element name="with_hold">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_with"/>
      <xs:element ref="kw_hold"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

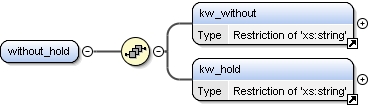

Element cursor_holdability / without_hold

Namespace

http://www.sqlparser.com/xml/ansi2003

Diagram

Properties

content

complex

Model

kw_without , kw_hold

Children

kw_hold, kw_without

Instance

<without_hold xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_without>{1,1}</kw_without>
  <kw_hold>{1,1}</kw_hold>
</without_hold>

Source

<xs:element name="without_hold">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_without"/>
      <xs:element ref="kw_hold"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
