Schema documentation for component cursor

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element cursor_returnability

Namespace

http://www.sqlparser.com/xml/ansi2003

Diagram

Properties

content

complex

Used by

Elements

cursor_attribute, cursor_properties

Model

with_return | without_return

Children

with_return, without_return

Instance

<cursor_returnability xmlns="http://www.sqlparser.com/xml/ansi2003">
  <with_return>{1,1}</with_return>
  <without_return>{1,1}</without_return>
</cursor_returnability>

Source

<xs:element name="cursor_returnability">
  <xs:complexType>
    <xs:choice>
      <xs:element name="with_return">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="kw_with"/>
            <xs:element ref="kw_return"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="without_return">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="kw_without"/>
            <xs:element ref="kw_return"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:choice>
  </xs:complexType>
</xs:element>

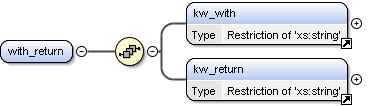

Element cursor_returnability / with_return

Namespace

http://www.sqlparser.com/xml/ansi2003

Diagram

Properties

content

complex

Model

kw_with , kw_return

Children

kw_return, kw_with

Instance

<with_return xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_with>{1,1}</kw_with>
  <kw_return>{1,1}</kw_return>
</with_return>

Source

<xs:element name="with_return">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_with"/>
      <xs:element ref="kw_return"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

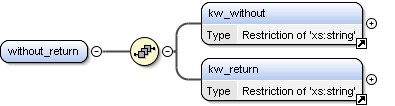

Element cursor_returnability / without_return

Namespace

http://www.sqlparser.com/xml/ansi2003

Diagram

Properties

content

complex

Model

kw_without , kw_return

Children

kw_return, kw_without

Instance

<without_return xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_without>{1,1}</kw_without>
  <kw_return>{1,1}</kw_return>
</without_return>

Source

<xs:element name="without_return">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_without"/>
      <xs:element ref="kw_return"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
