Schema documentation for component identity

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element identity_option

Namespace

http://www.sqlparser.com/xml/ansi2003

Diagram

Properties

content

complex

Used by

Element

like_option

Model

including_identity | excluding_identity

Children

excluding_identity, including_identity

Instance

<identity_option xmlns="http://www.sqlparser.com/xml/ansi2003">
  <including_identity>{1,1}</including_identity>
  <excluding_identity>{1,1}</excluding_identity>
</identity_option>

Source

<xs:element name="identity_option">
  <xs:complexType>
    <xs:choice>
      <xs:element name="including_identity">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="kw_including"/>
            <xs:element ref="kw_identity"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="excluding_identity">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="kw_excluding"/>
            <xs:element ref="kw_identity"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:choice>
  </xs:complexType>
</xs:element>

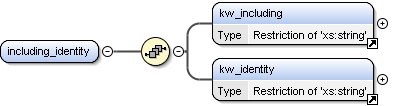

Element identity_option / including_identity

Namespace

http://www.sqlparser.com/xml/ansi2003

Diagram

Properties

content

complex

Model

kw_including , kw_identity

Children

kw_identity, kw_including

Instance

<including_identity xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_including>{1,1}</kw_including>
  <kw_identity>{1,1}</kw_identity>
</including_identity>

Source

<xs:element name="including_identity">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_including"/>
      <xs:element ref="kw_identity"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

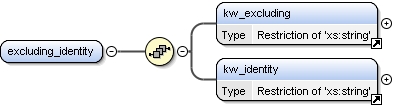

Element identity_option / excluding_identity

Namespace

http://www.sqlparser.com/xml/ansi2003

Diagram

Properties

content

complex

Model

kw_excluding , kw_identity

Children

kw_excluding, kw_identity

Instance

<excluding_identity xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_excluding>{1,1}</kw_excluding>
  <kw_identity>{1,1}</kw_identity>
</excluding_identity>

Source

<xs:element name="excluding_identity">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_excluding"/>
      <xs:element ref="kw_identity"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
