Schema documentation for component preparable_dynamic_delete_statement

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element preparable_dynamic_delete_statement_positioned

Namespace

http://www.sqlparser.com/xml/ansi2003

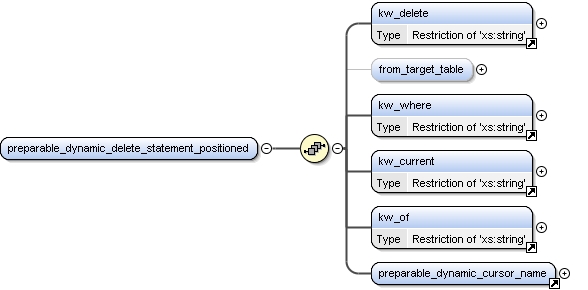

Diagram

Properties

content

complex

Used by

Element Group	dynamic_sql
Element	preparable_sql_data_statement

Model

kw_delete , from_target_table{0,1} , kw_where , kw_current , kw_of , preparable_dynamic_cursor_name

Children

from_target_table, kw_current, kw_delete, kw_of, kw_where, preparable_dynamic_cursor_name

Instance

<preparable_dynamic_delete_statement_positioned xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_delete>{1,1}</kw_delete>
  <from_target_table>{0,1}</from_target_table>
  <kw_where>{1,1}</kw_where>
  <kw_current>{1,1}</kw_current>
  <kw_of>{1,1}</kw_of>
  <preparable_dynamic_cursor_name>{1,1}</preparable_dynamic_cursor_name>
</preparable_dynamic_delete_statement_positioned>

Source

<xs:element name="preparable_dynamic_delete_statement_positioned">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_delete"/>
      <xs:element name="from_target_table" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="kw_from"/>
            <xs:element ref="target_table"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element ref="kw_where"/>
      <xs:element ref="kw_current"/>
      <xs:element ref="kw_of"/>
      <xs:element ref="preparable_dynamic_cursor_name"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element preparable_dynamic_delete_statement_positioned / from_target_table
