Schema documentation for component schema_name

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element schema_name_clause

Namespace

http://www.sqlparser.com/xml/ansi2003

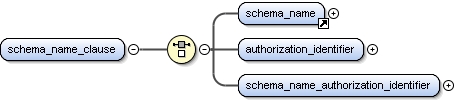

Diagram

Properties

content

complex

Used by

Element

schema_definition

Model

schema_name | authorization_identifier | schema_name_authorization_identifier

Children

authorization_identifier, schema_name, schema_name_authorization_identifier

Instance

<schema_name_clause xmlns="http://www.sqlparser.com/xml/ansi2003">
  <schema_name>{1,1}</schema_name>
  <authorization_identifier>{1,1}</authorization_identifier>
  <schema_name_authorization_identifier>{1,1}</schema_name_authorization_identifier>
</schema_name_clause>

Source

<xs:element name="schema_name_clause">
  <xs:complexType>
    <xs:choice>
      <xs:element ref="schema_name"/>
      <xs:element name="authorization_identifier">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="kw_authorization"/>
            <xs:element ref="schema_authorization_identifier"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="schema_name_authorization_identifier">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="schema_name"/>
            <xs:element ref="kw_authorization"/>
            <xs:element ref="schema_authorization_identifier"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:choice>
  </xs:complexType>
</xs:element>

Element schema_name_clause / authorization_identifier

Namespace

http://www.sqlparser.com/xml/ansi2003

Diagram

Properties

content

complex

Model

kw_authorization , schema_authorization_identifier

Children

kw_authorization, schema_authorization_identifier

Instance

<authorization_identifier xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_authorization>{1,1}</kw_authorization>
  <schema_authorization_identifier>{1,1}</schema_authorization_identifier>
</authorization_identifier>

Source

<xs:element name="authorization_identifier">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_authorization"/>
      <xs:element ref="schema_authorization_identifier"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element schema_name_clause / schema_name_authorization_identifier

Namespace

http://www.sqlparser.com/xml/ansi2003

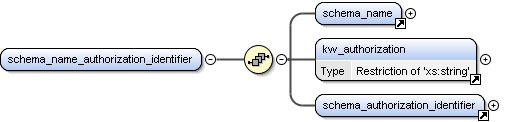

Diagram

Properties

content

complex

Model

schema_name , kw_authorization , schema_authorization_identifier

Children

kw_authorization, schema_authorization_identifier, schema_name

Instance

<schema_name_authorization_identifier xmlns="http://www.sqlparser.com/xml/ansi2003">
  <schema_name>{1,1}</schema_name>
  <kw_authorization>{1,1}</kw_authorization>
  <schema_authorization_identifier>{1,1}</schema_authorization_identifier>
</schema_name_authorization_identifier>

Source

<xs:element name="schema_name_authorization_identifier">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="schema_name"/>
      <xs:element ref="kw_authorization"/>
      <xs:element ref="schema_authorization_identifier"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
