Schema documentation for component simple_value

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element simple_value_specification

Namespace

http://www.sqlparser.com/xml/ansi2003

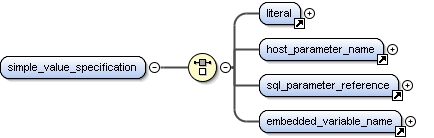

Diagram

Properties

content

complex

Used by

Elements

attributes_variable, condition_number, connection_name, connection_user_name, descriptor_name, extended_cursor_name, extended_statement_name, fetch_orientation/absolute_relative_simple_value_specification, item_number, number_of_conditions, occurrences, simple_value_specification_1, simple_value_specification_2, sql_server_name, sql_statement_variable, target_array_element_specification, update_target/object_column_simple_value_specification

Model

literal | host_parameter_name | sql_parameter_reference | embedded_variable_name

Children

embedded_variable_name, host_parameter_name, literal, sql_parameter_reference

Instance

<simple_value_specification xmlns="http://www.sqlparser.com/xml/ansi2003">
  <literal>{1,1}</literal>
  <host_parameter_name>{1,1}</host_parameter_name>
  <sql_parameter_reference>{1,1}</sql_parameter_reference>
  <embedded_variable_name>{1,1}</embedded_variable_name>
</simple_value_specification>

Source

<xs:element name="simple_value_specification">
  <xs:complexType>
    <xs:choice>
      <xs:element ref="literal"/>
      <xs:element ref="host_parameter_name"/>
      <xs:element ref="sql_parameter_reference"/>
      <xs:element ref="embedded_variable_name"/>
    </xs:choice>
  </xs:complexType>
</xs:element>
