Schema documentation for component fetch

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element fetch_orientation

Namespace

http://www.sqlparser.com/xml/ansi2003

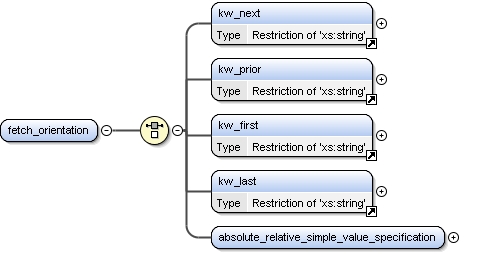

Diagram

Properties

content

complex

Used by

Element

fetch_orientation_from

Model

kw_next | kw_prior | kw_first | kw_last | absolute_relative_simple_value_specification

Children

absolute_relative_simple_value_specification, kw_first, kw_last, kw_next, kw_prior

Instance

<fetch_orientation xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_next>{1,1}</kw_next>
  <kw_prior>{1,1}</kw_prior>
  <kw_first>{1,1}</kw_first>
  <kw_last>{1,1}</kw_last>
  <absolute_relative_simple_value_specification>{1,1}</absolute_relative_simple_value_specification>
</fetch_orientation>

Source

<xs:element name="fetch_orientation">
  <xs:complexType>
    <xs:choice>
      <xs:element ref="kw_next"/>
      <xs:element ref="kw_prior"/>
      <xs:element ref="kw_first"/>
      <xs:element ref="kw_last"/>
      <xs:element name="absolute_relative_simple_value_specification">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="absolute_or_relative">
              <xs:complexType>
                <xs:choice>
                  <xs:element ref="kw_absolute"/>
                  <xs:element ref="kw_relative"/>
                </xs:choice>
              </xs:complexType>
            </xs:element>
            <xs:element ref="simple_value_specification"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:choice>
  </xs:complexType>
</xs:element>

Element fetch_orientation / absolute_relative_simple_value_specification

Namespace

http://www.sqlparser.com/xml/ansi2003

Diagram

Properties

content

complex

Model

absolute_or_relative , simple_value_specification

Children

absolute_or_relative, simple_value_specification

Instance

<absolute_relative_simple_value_specification xmlns="http://www.sqlparser.com/xml/ansi2003">
  <absolute_or_relative>{1,1}</absolute_or_relative>
  <simple_value_specification>{1,1}</simple_value_specification>
</absolute_relative_simple_value_specification>

Source

<xs:element name="absolute_relative_simple_value_specification">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="absolute_or_relative">
        <xs:complexType>
          <xs:choice>
            <xs:element ref="kw_absolute"/>
            <xs:element ref="kw_relative"/>
          </xs:choice>
        </xs:complexType>
      </xs:element>
      <xs:element ref="simple_value_specification"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element fetch_orientation / absolute_relative_simple_value_specification / absolute_or_relative

Namespace

http://www.sqlparser.com/xml/ansi2003

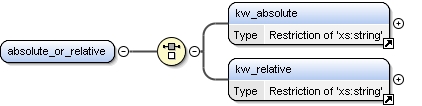

Diagram

Properties

content

complex

Model

kw_absolute | kw_relative

Children

kw_absolute, kw_relative

Instance

<absolute_or_relative xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_absolute>{1,1}</kw_absolute>
  <kw_relative>{1,1}</kw_relative>
</absolute_or_relative>

Source

<xs:element name="absolute_or_relative">
  <xs:complexType>
    <xs:choice>
      <xs:element ref="kw_absolute"/>
      <xs:element ref="kw_relative"/>
    </xs:choice>
  </xs:complexType>
</xs:element>
