Schema documentation for component sql

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element sql_prefix

Namespace

http://www.sqlparser.com/xml/ansi2003

Diagram

Properties

content

complex

Used by

Elements

embedded_sql_begin_declare, embedded_sql_end_declare, embedded_sql_mumps_declare, embedded_sql_statement

Model

exec_sql | ampersand_sql

Children

ampersand_sql, exec_sql

Instance

<sql_prefix xmlns="http://www.sqlparser.com/xml/ansi2003">
  <exec_sql>{1,1}</exec_sql>
  <ampersand_sql>{1,1}</ampersand_sql>
</sql_prefix>

Source

<xs:element name="sql_prefix">
  <xs:complexType>
    <xs:choice>
      <xs:element name="exec_sql">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="kw_exec"/>
            <xs:element ref="kw_sql"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="ampersand_sql">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="ampersand"/>
            <xs:element ref="kw_sql"/>
            <xs:element ref="left_paren"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:choice>
  </xs:complexType>
</xs:element>

Element sql_prefix / exec_sql

Namespace

http://www.sqlparser.com/xml/ansi2003

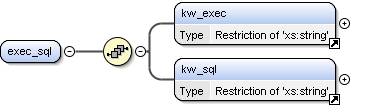

Diagram

Properties

content

complex

Model

kw_exec , kw_sql

Children

kw_exec, kw_sql

Instance

<exec_sql xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_exec>{1,1}</kw_exec>
  <kw_sql>{1,1}</kw_sql>
</exec_sql>

Source

<xs:element name="exec_sql">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_exec"/>
      <xs:element ref="kw_sql"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element sql_prefix / ampersand_sql

Namespace

http://www.sqlparser.com/xml/ansi2003

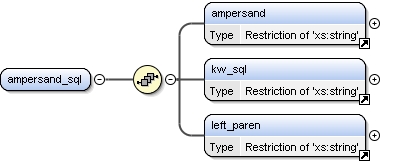

Diagram

Properties

content

complex

Model

ampersand , kw_sql , left_paren

Children

ampersand, kw_sql, left_paren

Instance

<ampersand_sql xmlns="http://www.sqlparser.com/xml/ansi2003">
  <ampersand>{1,1}</ampersand>
  <kw_sql>{1,1}</kw_sql>
  <left_paren>{1,1}</left_paren>
</ampersand_sql>

Source

<xs:element name="ampersand_sql">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="ampersand"/>
      <xs:element ref="kw_sql"/>
      <xs:element ref="left_paren"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
