Schema documentation for component user_defined_cast

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element user_defined_cast_definition

Namespace

http://www.sqlparser.com/xml/ansi2003

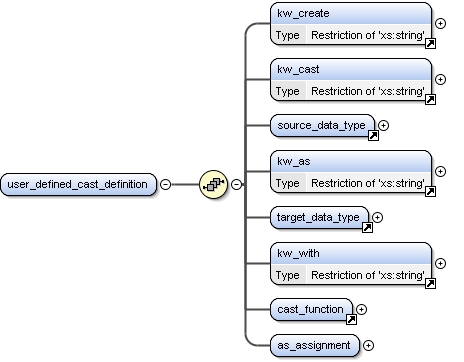

Diagram

Properties

content

complex

Used by

Elements	schema_element, sql_schema_definition_statement
Element Group	schema_definition_and_manipulation

Model

kw_create , kw_cast , source_data_type , kw_as , target_data_type , kw_with , cast_function , as_assignment

Children

as_assignment, cast_function, kw_as, kw_cast, kw_create, kw_with, source_data_type, target_data_type

Instance

<user_defined_cast_definition xmlns="http://www.sqlparser.com/xml/ansi2003">
  <kw_create>{1,1}</kw_create>
  <kw_cast>{1,1}</kw_cast>
  <source_data_type>{1,1}</source_data_type>
  <kw_as>{1,1}</kw_as>
  <target_data_type>{1,1}</target_data_type>
  <kw_with>{1,1}</kw_with>
  <cast_function>{1,1}</cast_function>
  <as_assignment>{1,1}</as_assignment>
</user_defined_cast_definition>

Source

<xs:element name="user_defined_cast_definition">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="kw_create"/>
      <xs:element ref="kw_cast"/>
      <xs:element ref="source_data_type"/>
      <xs:element ref="kw_as"/>
      <xs:element ref="target_data_type"/>
      <xs:element ref="kw_with"/>
      <xs:element ref="cast_function"/>
      <xs:element name="as_assignment">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="kw_as"/>
            <xs:element ref="kw_assignment"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

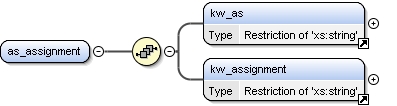

Element user_defined_cast_definition / as_assignment
