Schema documentation for component character_string

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element character_string_literal

Namespace

http://www.sqlparser.com/xml/ansi2003

Diagram

Properties

content

complex

Used by

Elements

delimiter_token, external_routine_name, general_literal

Model

introducer_character_set_specification{0,1} , quoted_character_representation+

Children

introducer_character_set_specification, quoted_character_representation

Instance

<character_string_literal xmlns="http://www.sqlparser.com/xml/ansi2003">
  <introducer_character_set_specification>{0,1}</introducer_character_set_specification>
  <quoted_character_representation>{1,unbounded}</quoted_character_representation>
</character_string_literal>

Source

<xs:element name="character_string_literal">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="introducer_character_set_specification" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:sequence>
              <xs:element ref="introducer"/>
              <xs:element ref="character_set_specification"/>
            </xs:sequence>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="quoted_character_representation" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="quote"/>
            <xs:element ref="character_representation" minOccurs="0"/>
            <xs:element ref="quote"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element character_string_literal / introducer_character_set_specification

Namespace

http://www.sqlparser.com/xml/ansi2003

Diagram

Properties

content	complex
minOccurs	0

Model

introducer , character_set_specification

Children

character_set_specification, introducer

Instance

<introducer_character_set_specification xmlns="http://www.sqlparser.com/xml/ansi2003">
  <introducer>{1,1}</introducer>
  <character_set_specification>{1,1}</character_set_specification>
</introducer_character_set_specification>

Source

<xs:element name="introducer_character_set_specification" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:sequence>
        <xs:element ref="introducer"/>
        <xs:element ref="character_set_specification"/>
      </xs:sequence>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element character_string_literal / quoted_character_representation

Namespace

http://www.sqlparser.com/xml/ansi2003

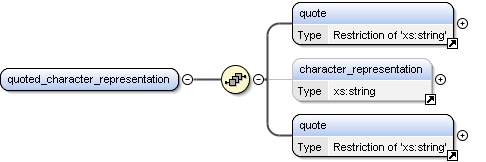

Diagram

Properties

content	complex
maxOccurs	unbounded

Model

quote , character_representation{0,1} , quote

Children

character_representation, quote

Instance

<quoted_character_representation xmlns="http://www.sqlparser.com/xml/ansi2003">
  <quote>{1,1}</quote>
  <character_representation>{0,1}</character_representation>
  <quote>{1,1}</quote>
</quoted_character_representation>

Source

<xs:element name="quoted_character_representation" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="quote"/>
      <xs:element ref="character_representation" minOccurs="0"/>
      <xs:element ref="quote"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
