Schema documentation for component numeric_value

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element numeric_value_expression

Namespace

http://www.sqlparser.com/xml/ansi2003

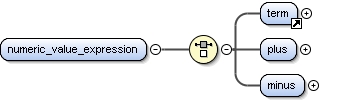

Diagram

Properties

content

complex

Used by

Elements

absolute_value_expression, array_element_reference, ceiling_function, common_value_expression, dependent_variable_expression, exponential_function, floor_function, independent_variable_expression, inverse_distribution_function_argument, natural_logarithm, numeric_value_expression/minus, numeric_value_expression/plus, numeric_value_expression_base, numeric_value_expression_dividend, numeric_value_expression_divisor, numeric_value_expression_exponent, regex_capture_group, regex_occurrence, repeat_argument, sample_percentage, square_root, start_position, string_length, width_bucket_bound_1, width_bucket_bound_2, width_bucket_count, width_bucket_operand

Element Group

scalar_expressions

Model

term | plus | minus

Children

minus, plus, term

Instance

<numeric_value_expression xmlns="http://www.sqlparser.com/xml/ansi2003">
  <term>{1,1}</term>
  <plus>{1,1}</plus>
  <minus>{1,1}</minus>
</numeric_value_expression>

Source

<xs:element name="numeric_value_expression">
  <xs:complexType>
    <xs:choice>
      <xs:element ref="term"/>
      <xs:element name="plus">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="numeric_value_expression"/>
            <xs:element ref="term"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="minus">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="numeric_value_expression"/>
            <xs:element ref="term"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:choice>
  </xs:complexType>
</xs:element>

Element numeric_value_expression / plus

Namespace

http://www.sqlparser.com/xml/ansi2003

Diagram

Properties

content

complex

Model

numeric_value_expression , term

Children

numeric_value_expression, term

Instance

<plus xmlns="http://www.sqlparser.com/xml/ansi2003">
  <numeric_value_expression>{1,1}</numeric_value_expression>
  <term>{1,1}</term>
</plus>

Source

<xs:element name="plus">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="numeric_value_expression"/>
      <xs:element ref="term"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element numeric_value_expression / minus

Namespace

http://www.sqlparser.com/xml/ansi2003

Diagram

Properties

content

complex

Model

numeric_value_expression , term

Children

numeric_value_expression, term

Instance

<minus xmlns="http://www.sqlparser.com/xml/ansi2003">
  <numeric_value_expression>{1,1}</numeric_value_expression>
  <term>{1,1}</term>
</minus>

Source

<xs:element name="minus">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="numeric_value_expression"/>
      <xs:element ref="term"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
