Schema documentation for component term

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element term

Namespace

http://www.sqlparser.com/xml/ansi2003

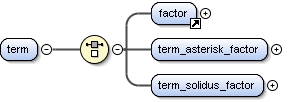

Diagram

Properties

content

complex

Used by

Elements

interval_term/term_asterisk_interval_factor, numeric_value_expression, numeric_value_expression/minus, numeric_value_expression/plus, term/term_asterisk_factor, term/term_solidus_factor

Model

factor | term_asterisk_factor | term_solidus_factor

Children

factor, term_asterisk_factor, term_solidus_factor

Instance

<term xmlns="http://www.sqlparser.com/xml/ansi2003">
  <factor>{1,1}</factor>
  <term_asterisk_factor>{1,1}</term_asterisk_factor>
  <term_solidus_factor>{1,1}</term_solidus_factor>
</term>

Source

<xs:element name="term">
  <xs:complexType>
    <xs:choice>
      <xs:element ref="factor"/>
      <xs:element name="term_asterisk_factor">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="term"/>
            <xs:element ref="factor"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="term_solidus_factor">
        <xs:complexType>
          <xs:sequence>
            <xs:element ref="term"/>
            <xs:element ref="factor"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:choice>
  </xs:complexType>
</xs:element>

Element term / term_asterisk_factor

Namespace

http://www.sqlparser.com/xml/ansi2003

Diagram

Properties

content

complex

Model

term , factor

Children

factor, term

Instance

<term_asterisk_factor xmlns="http://www.sqlparser.com/xml/ansi2003">
  <term>{1,1}</term>
  <factor>{1,1}</factor>
</term_asterisk_factor>

Source

<xs:element name="term_asterisk_factor">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="term"/>
      <xs:element ref="factor"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element term / term_solidus_factor

Namespace

http://www.sqlparser.com/xml/ansi2003

Diagram

Properties

content

complex

Model

term , factor

Children

factor, term

Instance

<term_solidus_factor xmlns="http://www.sqlparser.com/xml/ansi2003">
  <term>{1,1}</term>
  <factor>{1,1}</factor>
</term_solidus_factor>

Source

<xs:element name="term_solidus_factor">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="term"/>
      <xs:element ref="factor"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
